Felipe M. 2767709809

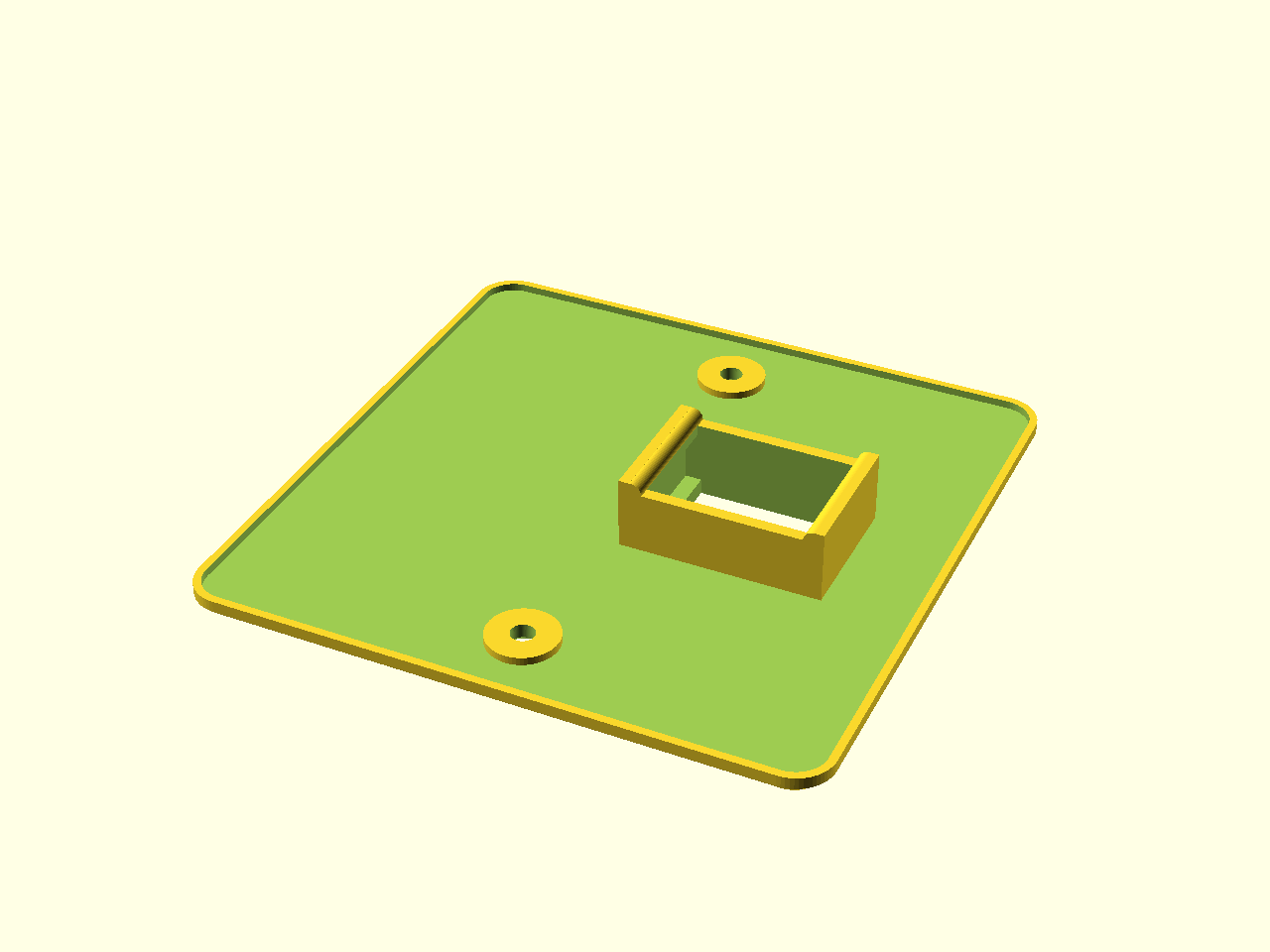

Replace hand-built keystone cradle with marcuswu RJ45 receiver ...

Drops all the custom slot/latch-shelf/face-stop/base-notch parameters
and modules in favour of the imported rj45Receiver() component. The
receiver sits flat behind the front face with its slot opening at
cap z=0 (after a 180° flip around Y) and its body extending into the
cavity / wall box. Validation now uses rj45_width × rj45_height as the
in-plane footprint. Also bumps screw_countersink_diameter from 5.5 mm
to 6.6 mm.

2026-04-27 08:25:01 +02:00

35 KiB

1280x960px

Raw Permalink History
